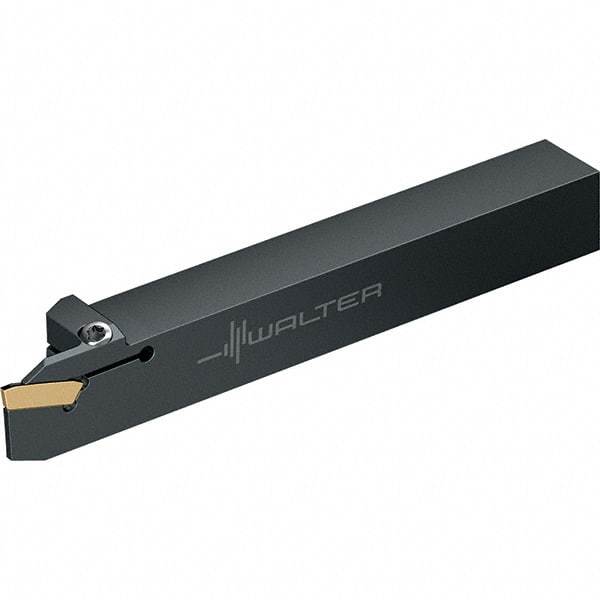

Walter - External Thread, 0.2362" Max Depth of Cut, 125mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 16mm Shank Height x 16mm Shank Width, GX16-0E150.. Insert Style, XLDE-C Toolholder Style
Item #: 53003091
Brand: Walter
Model #: 6090504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Maximum Groove Width (mm) | 1.50 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Toolholder Style | XLDE-C |
| Insert Compatibility | GX16-0E150.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 24.00 |
| Head Length (Decimal Inch) | 0.9449 |
| Shank Length (Decimal Inch) | 3.9764 |
| Shank Length (mm) | 101.00 |
| Complete Insert Compatibility | GX16-0E150N01-CF6; GX16-0E150R/L10-CF6 |
