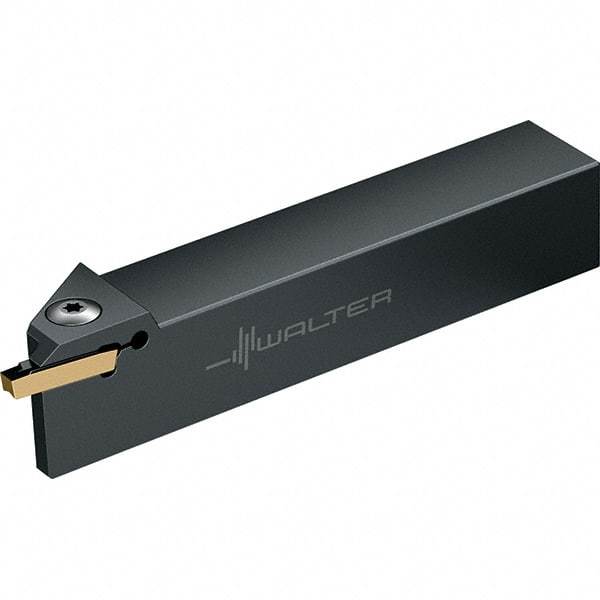

Walter - External Thread, 0.157" Max Depth of Cut, 2mm Min Groove Width, 5.4" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, GX16-.. Insert Style, G1511 Toolholder Style
Item #: 53003018
Brand: Walter
Model #: 6062035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (Decimal Inch) | 5.4000 |
| Toolholder Style | G1511 |
| Insert Compatibility | GX16-.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7830 |
| Head Length (Decimal Inch) | 1.2400 |
| Shank Length (Decimal Inch) | 4.1600 |
| Complete Insert Compatibility | GX16-0E150N01-CF6; GX16-0E150R/L10-CF6; GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4 |
