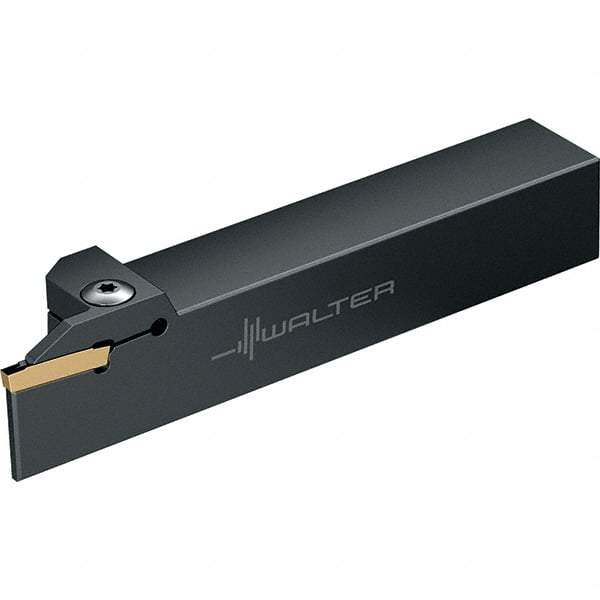

Walter - External Thread, 0.4724" Max Depth of Cut, 145mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, GX24-3E4/F4.. Insert Style, G1011 Toolholder Style
Item #: 53001061
Brand: Walter
Model #: 5479771
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Overall Length (mm) | 145.00 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX24-3E4/F4.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7992 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Shank Length (Decimal Inch) | 4.3307 |
| Shank Length (mm) | 110.00 |
| Complete Insert Compatibility | GX24-3E400N02-CF5; GX24-3E400N030-CE4; GX24-3E400N03-CE4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N080-UF4; GX24-3E400N08-UF4; GX24-3E400N200-RD4 |
