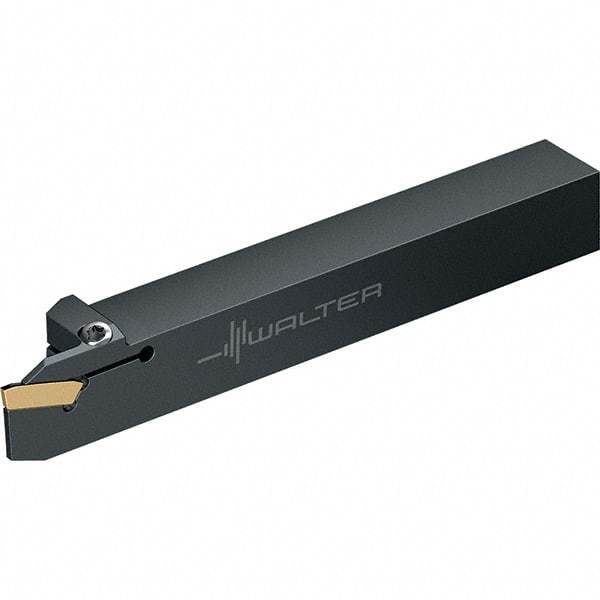

Walter - External Thread, 0.4724" Max Depth of Cut, 3mm Min Groove Width, 125mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, GX16-2E3.. Insert Style, XLDE-C Toolholder Style
Item #: 53000998
Brand: Walter
Model #: 5531862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Toolholder Style | XLDE-C |
| Insert Compatibility | GX16-2E3.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4882 |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Shank Length (Decimal Inch) | 4.1732 |
| Shank Length (mm) | 106.00 |
| Complete Insert Compatibility | GX16-2E300N02-CE4; GX16-2E300N02-CF5; GX16-2E300N02-CF6; GX16-2E300N030-GD3; GX16-2E300N030-UA4; GX16-2E300N030-UF4; GX16-2E300N03-GD3; GX16-2E300N03-GD6; GX16-2E300N03-UD6; GX16-2E300N03-UF4; GX16-2E300R/L6-CE4; GX16-2E300R/L6-CF5; GX16-2E300R/L6-CF6 |
