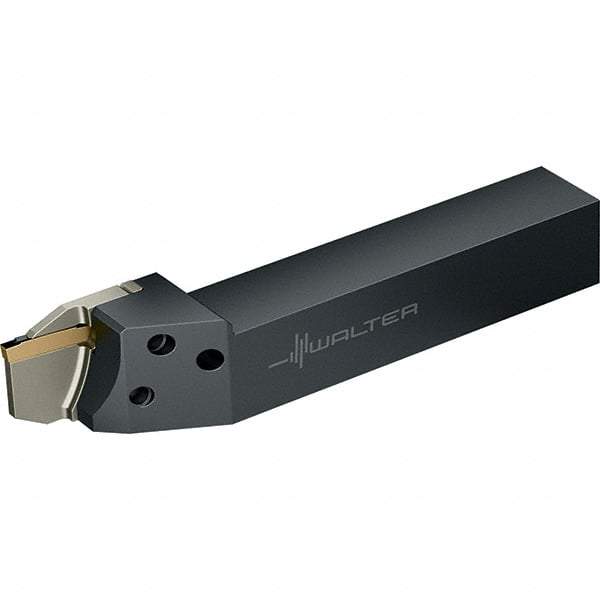

Walter - NCCE, External, Left Hand, 3mm Max Depth of Cut, 0.6 to 2.3mm Groove Width, Indexable Grooving Tool Holder - GX16-2.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 123mm OAL
Item #: 53000196
Brand: Walter
Model #: 5009185
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.0236 |
| Minimum Groove Width (mm) | 0.60 |
| Maximum Groove Width (mm) | 2.30 |
| Maximum Groove Width (Decimal Inch) | 0.0906 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Toolholder Style | NCCE |
| Insert Compatibility | GX16-2.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (mm) | 24.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9764 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Full Radius Insert | No |
| Shank Length (mm) | 90.00 |
| Shank Length (Decimal Inch) | 3.5433 |
| Complete Insert Compatibility | GX16-2E300N02-CE4; GX16-2E300N02-CF5; GX16-2E300N02-CF6; GX16-2E300N030-GD3; GX16-2E300N030-UA4; GX16-2E300N030-UF4; GX16-2E300N03-GD3; GX16-2E300N03-GD6; GX16-2E300N03-UD6; GX16-2E300N03-UF4; GX16-2E300R/L6-CE4; GX16-2E300R/L6-CF5; GX16-2E300R/L6-CF6; GX |
