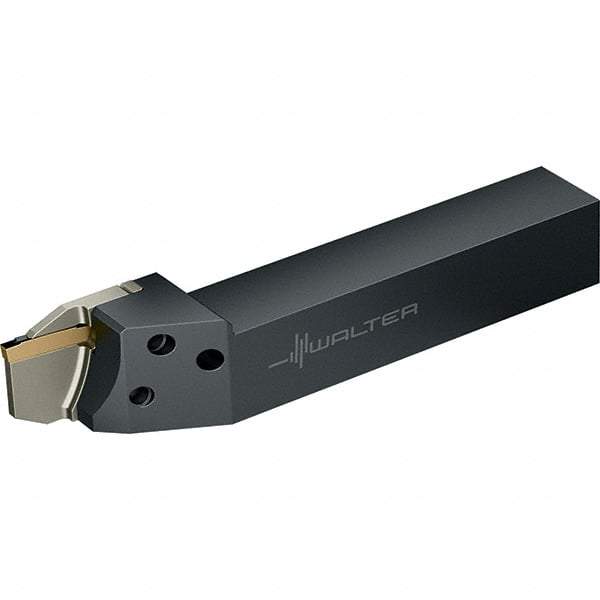

Walter - NCCE, External, Right Hand, 2mm Max Depth of Cut, 0.6 to 1.7mm Groove Width, Indexable Grooving Tool Holder - GX09-1.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 98mm OAL
Item #: 53000188
Brand: Walter
Model #: 5009184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0236 |
| Minimum Groove Width (mm) | 0.60 |
| Maximum Groove Width (mm) | 1.70 |
| Maximum Groove Width (Decimal Inch) | 0.0669 |
| Overall Length (mm) | 98.00 |
| Overall Length (Decimal Inch) | 3.8583 |
| Toolholder Style | NCCE |
| Insert Compatibility | GX09-1.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (mm) | 19.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7795 |
| Head Length (mm) | 24.00 |
| Head Length (Decimal Inch) | 0.9449 |
| Full Radius Insert | No |
| Shank Length (mm) | 74.00 |
| Shank Length (Decimal Inch) | 2.9134 |
| Complete Insert Compatibility | GX09-1E200N02-GD3; GX09-1E200N02-UF4; GX09-1E250N02-GD3; GX09-1S1.00R/L; GX09-1S1.20R/L; GX09-1S1.40R/L; GX09-1S1.70R/L; GX09-1S1.95N; GX09-1S2.25N |
