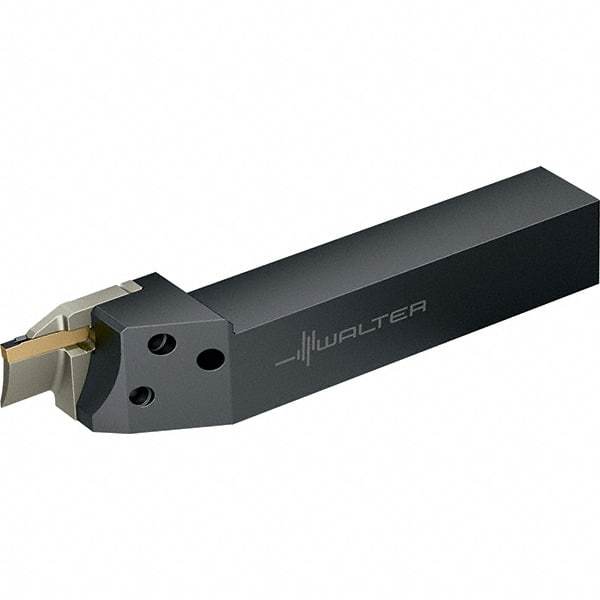

Walter - NCEE, External, Right Hand, 15mm Max Depth of Cut, 3 to 3.5mm Groove Width, Indexable Grooving Tool Holder - GX24-2.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 162mm OAL
Item #: 53000048
Brand: Walter
Model #: 5009302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.50 |
| Maximum Groove Width (Decimal Inch) | 0.1378 |
| Overall Length (mm) | 162.00 |
| Overall Length (Decimal Inch) | 6.3780 |
| Toolholder Style | NCEE |
| Insert Compatibility | GX24-2.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Back of Bar to Cutting Edge (mm) | 32.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2677 |
| Maximum Groove Outside Diameter (mm) | 150.00 |
| Minimum Axial Groove Inside Diameter(mm) | 100.00 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Full Radius Insert | No |
| Shank Length (mm) | 115.00 |
| Shank Length (Decimal Inch) | 4.5276 |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
