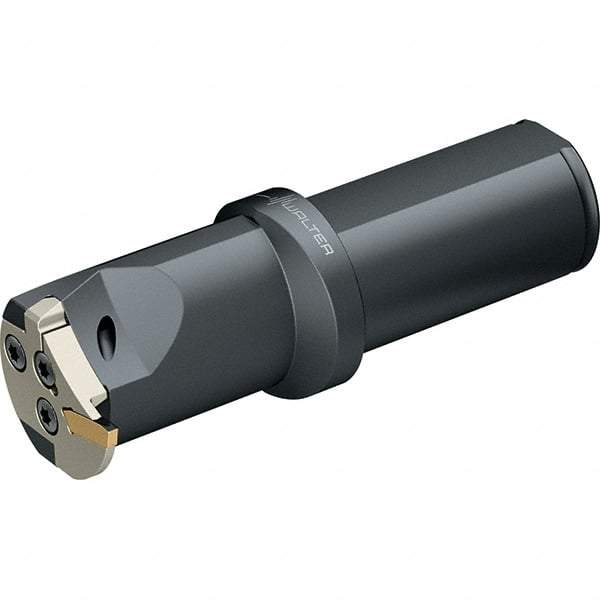

Walter - NCAI, Internal, Right Hand, 5mm Max Depth of Cut, 3 to 3mm Groove Width, Indexable Grooving Tool Holder - GX09-2E.. Insert Compatibility, 20mm Shank Width, 80mm OAL, Through Coolant
Item #: 52999497
Brand: Walter
Model #: 5009445
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX09-2E.. |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 29.40 |
| Head Length (Decimal Inch) | 1.1575 |
| Full Radius Insert | No |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | GX09-2E300N030-GD3; GX09-2E300N03-GD3; GX09-2E300N03-UF4; GX09-2E350N03-GD3 |
