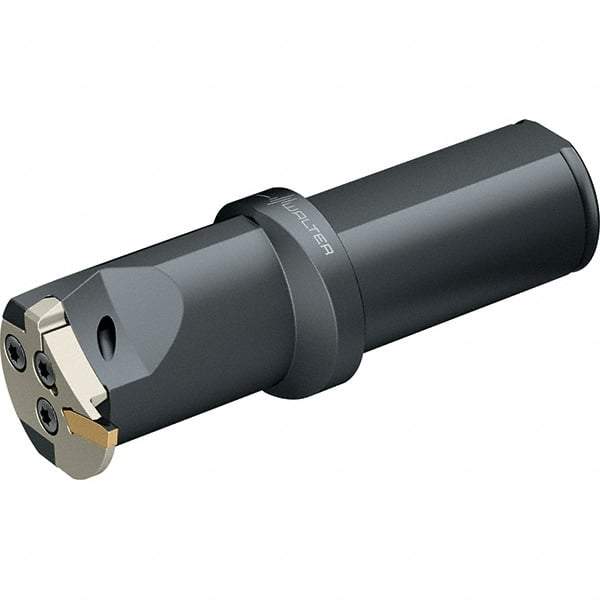

Walter - NCAI, Internal, Right Hand, 10mm Max Depth of Cut, 2 to 2.5mm Groove Width, Indexable Grooving Tool Holder - GX16-1E.. Insert Compatibility, 50mm Shank Width, 350.7mm OAL, Through Coolant
Item #: 52999323
Brand: Walter
Model #: 5009492
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 350.70 |
| Overall Length (Decimal Inch) | 13.8071 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX16-1E.. |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Edge (mm) | 35.50 |
| Center to Cutting Edge (Decimal Inch) | 1.3976 |
| Head Height (Decimal Inch) | 1.9685 |
| Head Height (mm) | 50.00 |
| Head Length (mm) | 99.40 |
| Head Length (Decimal Inch) | 3.9134 |
| Full Radius Insert | No |
| Shank Length (mm) | 251.30 |
| Shank Length (Decimal Inch) | 9.8937 |
| Complete Insert Compatibility | GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4; GX16-1E200N10-RD4; GX16-1E200R/L6-CE4 |
