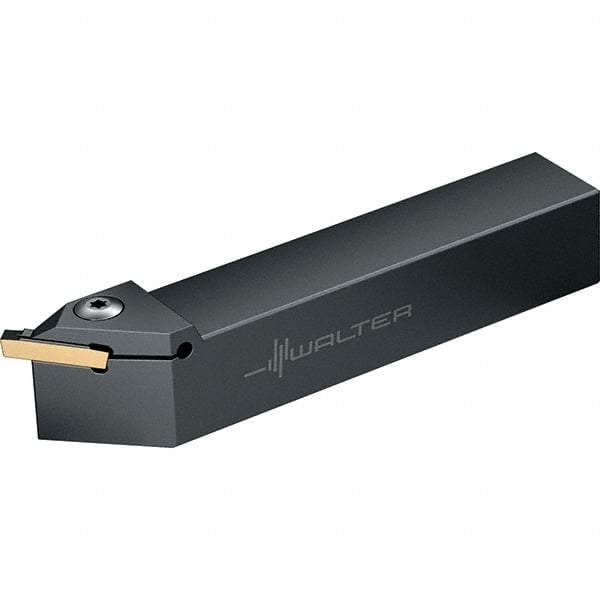

Walter - G1551, External, Left Hand, 0.236" Max Depth of Cut, 3 to 5.99mm Groove Width, Indexable Grooving Tool Holder - GX24.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5.783" OAL
Item #: 52996949
Brand: Walter
Model #: 6062483
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 5.99 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 5.7830 |
| Toolholder Style | G1551 |
| Insert Compatibility | GX24.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9570 |
| Head Length (Decimal Inch) | 1.3030 |
| Full Radius Insert | Yes |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
