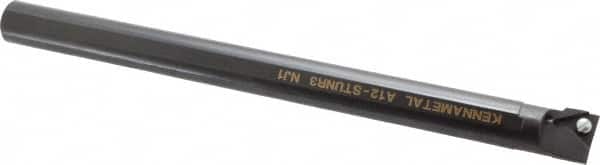

Kennametal - 23.62mm Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-STUN Indexable Boring Bar - T321P Insert, Screw Holding Method
Item #: 52983053
Brand: Kennametal
Model #: 1094743
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STUN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 23.62 |
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | T321P |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -3 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Toolholder Material | Steel |
