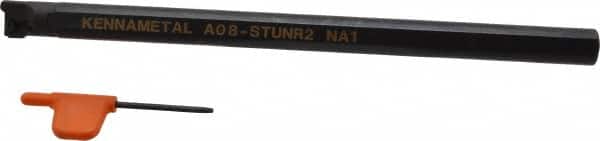

Kennametal - 15.24mm Min Bore Diam, 8" OAL, 1/2" Shank Diam, A-STUN Indexable Boring Bar - T221P Insert, Screw Holding Method
Item #: 52983012
Brand: Kennametal
Model #: 1094739
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STUN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 15.24 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | T221P |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -3 |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Toolholder Material | Steel |
