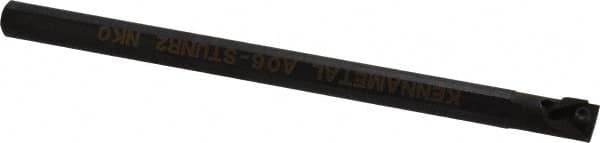

Kennametal - 12.19mm Min Bore Diam, 6" OAL, 3/8" Shank Diam, A-STUN Indexable Boring Bar - T221P Insert, Screw Holding Method
Item #: 52982998
Brand: Kennametal
Model #: 1094737
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STUN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 12.19 |
| Minimum Bore Diameter (Decimal Inch) | 0.4800 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | T221P |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -3 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Coolant Hole Diameter (Decimal Inch) | 0.1300 |
| Toolholder Material | Steel |
