Sandvik Coromant - 130mm Max Drill Depth, 3xD, 42mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank - Benchmark Tooling

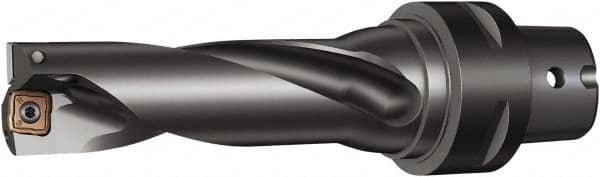

Sandvik Coromant - 130mm Max Drill Depth, 3xD, 42mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank


Item #: 52925534
Brand: Sandvik Coromant
Model #: 6340071
Exact Tooling IR#: 04

Product Specifications
Drill Style 880
Drill Diameter (mm) 42.00
Drill Diameter (Decimal Inch) 1.6535
Maximum Drill Depth (mm) 130.00
Maximum Drill Depth (Decimal Inch) 5.1181
Shank Type Modular Connection
Modular Connection Size C5
Cutting Direction Right Hand
Through Coolant Through Coolant
Drill Depth by Diameter Ratio 3xD
Toolholder Material Steel
Number of Drill Inserts 2
Maximum Drill Diameter (Decimal Inch) 1.6063
Maximum Drill Diameter (mm) 40.80
Overall Length/Projection (mm) 230.00
Overall Length/Projection (Decimal Inch) 9.0551
Insert Compatibility 880-070406H-C-GM; 880-0704W06H-P-GM
Flute Length (mm) 126.00
Flute Length (Decimal Inch) 4.9606
Body Length (Decimal Inch) 7.8457
Body Length (mm) 199.28
Shank Length (mm) 30.72
Shank Length (Decimal Inch) 1.2096
Collar Diameter (mm) 62.50
Collar Diameter (Decimal Inch) 2.4606
Series CoroDrill 880
Radial Adjustment (-mm) 0.63
$968.97
