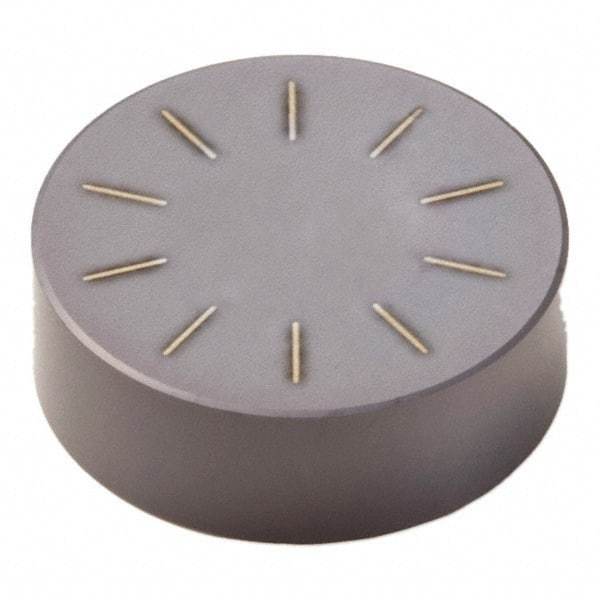

Seco - RNGN22 E Grade CBN010 PCBN Turning Insert - Round, 1/4" Inscr Circle, 1/8" Thick
Item #: 52895810
Brand: Seco
Model #: 11281
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | RNGN |
| Insert Size | 22 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | CBN010 |
| Chip Breaker | E |
| Relief Angle | 0 |
| Insert Holding Method | Clamp |
| Shape | Round |
