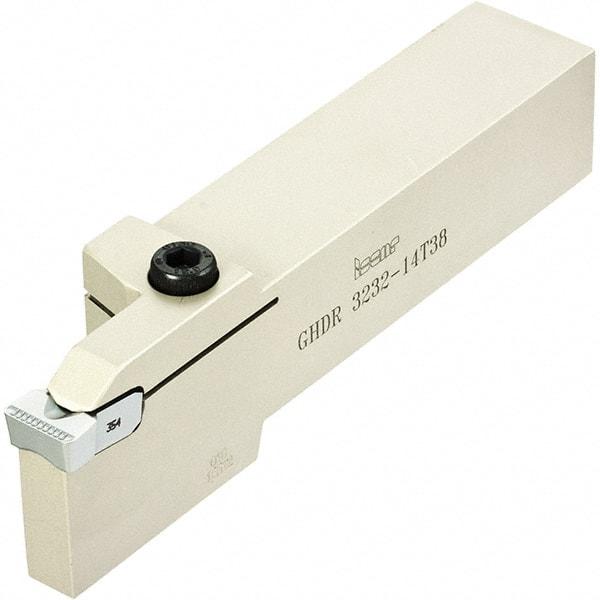

Iscar - THD, External, Right Hand, 1.77" Max Depth of Cut, 0.79" Max Groove Width, Indexable Grooving Tool Holder - TIGERV 2006 Insert Compatibility, 1-1/2" Shank Height, 1-1/2" Shank Width, 7" OAL
Item #: 52738895
Brand: Iscar
Model #: 2861050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.7700 |
| Maximum Groove Width (Decimal Inch) | 0.7900 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | THD |
| Insert Compatibility | TIGERV 2006 |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1100 |
| Complete Insert Compatibility | TIGERV 2006-152 |
