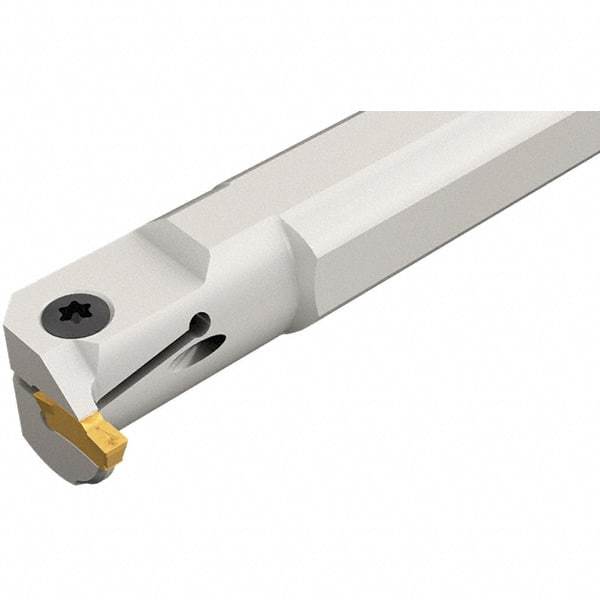

Iscar - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, TGIR Indexable Boring Bar - 40mm Max Bore Depth, TGMF 3.. Insert, Clamp Holding Method
Item #: 52738655
Brand: Iscar
Model #: 2850052
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | TGIR |
| Series | Top Grip |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | TGMF 3.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 18.80 |
| Center to Cutting Edge (Decimal Inch) | 0.7402 |
| Complete Insert Compatibility | TGMF 302; TGMF 304; TGMF 315 |
