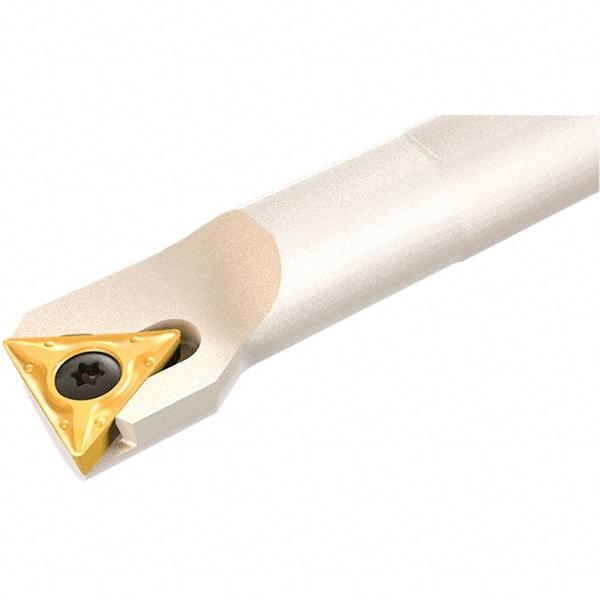

Iscar - 15.8mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, S-STFC Indexable Boring Bar - 30mm Max Bore Depth, TC.T 1102.. Insert, Screw Holding Method
Item #: 52738051
Brand: Iscar
Model #: 3600993
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STFC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 15.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.6220 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 30.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TC.T 1102.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | -3 |
| Complete Insert Compatibility | TCGT 110204-AS; TCMT 110202-PF; TCMT 110204-SM; TCMT 110204D; TCMT 110204T; TCMT 110208-SM |
