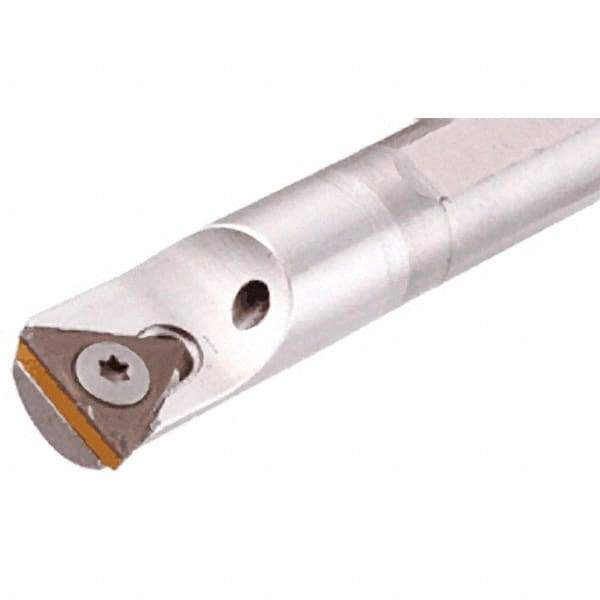

Iscar - 11mm Min Bore Diam, 125mm OAL, 12mm Shank Diam, S-STFP Indexable Boring Bar - 35mm Max Bore Depth, TP.. 1102.. Insert, Screw Holding Method
Item #: 52738028
Brand: Iscar
Model #: 3601016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STFP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 11.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4331 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TP.. 1102.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 5.60 |
| Center to Cutting Edge (Decimal Inch) | 0.2205 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGB 110204; TPGB 110204-XL; TPGH 110204-L; TPGH 110204-XL; TPGH 110208-L; TPMT 110202; TPMT 110204; TPMT 110208 |
| Toolholder Material | Steel |
