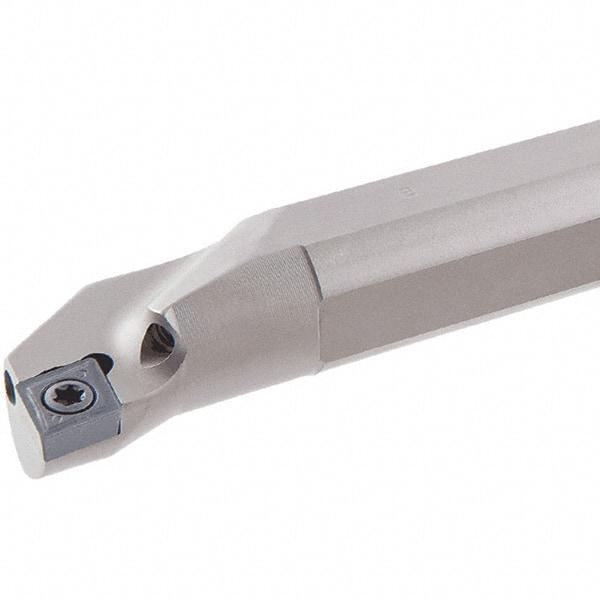

Iscar - 10.5mm Min Bore Diam, 125mm OAL, 8mm Shank Diam, S-SCLC Indexable Boring Bar - 12mm Max Bore Depth, CC.T 0602.. Insert, Screw Holding Method
Item #: 52737988
Brand: Iscar
Model #: 3600851
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 10.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.4134 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 12.00 |
| Maximum Bore Depth (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | CC.T 0602.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Rake Angle | -11 |
| Complete Insert Compatibility | CCGT 060201-AS; CCGT 060201-SM; CCGT 060202; CCGT 060202-AS; CCGT 060202-SM; CCGT 060202L; CCGT 060204; CCGT 060204-AS; CCGT 060204L; CCMT 060202; CCMT 060202-14; CCMT 060202-SM; CCMT 060202T; CCMT 060204-14; CCMT 060204-SM; CCMT 060204T; CCMT 060208-SM |
| Toolholder Material | Steel |
