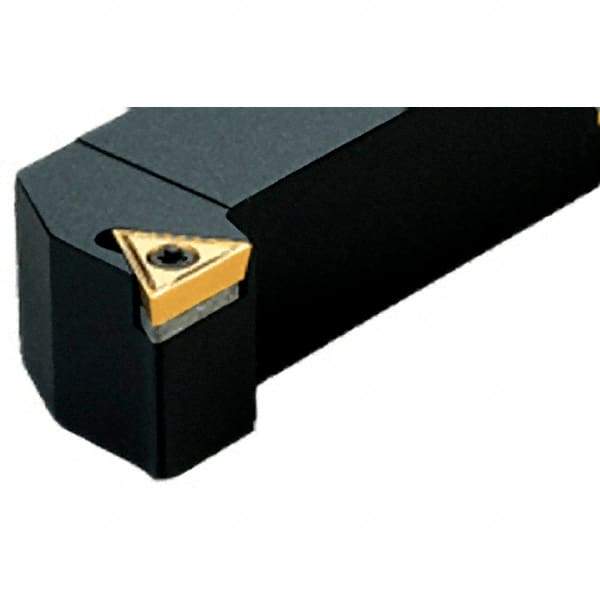

Iscar - STGC, Right Hand Cut, 91° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 80mm OAL, TC.T 1102.. Insert Compatibility, Series Isoturn
Item #: 52737749
Brand: Iscar
Model #: 3601028
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | STGC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Isoturn |
| Lead Angle | 91 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | TC.T 1102.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 13.00 |
| Head Length (Decimal Inch) | 0.5118 |
