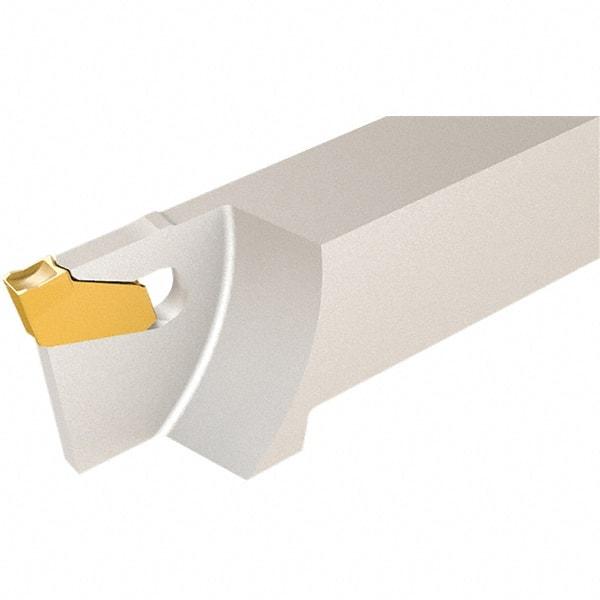

Iscar - External Thread, 1.1024" Max Depth of Cut, 2.7mm Min Groove Width, 150mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, GF.. Insert Style, SGTF Toolholder Style, Series Self-Grip
Item #: 52734423
Brand: Iscar
Model #: 2301213
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Minimum Groove Width (Decimal Inch) | 0.1063 |
| Minimum Groove Width (mm) | 2.70 |
| Maximum Groove Width (Decimal Inch) | 0.1390 |
| Maximum Groove Width (mm) | 3.53 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Self-Grip |
| Toolholder Style | SGTF |
| Insert Compatibility | GF.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | GFL 3 - 4D; GFL 3S - 4D; GFL 3S - 8D; GFN 3; GFN 3B; GFN 3E; GFN 3J; GFN 3JS; GFN 3M; GFN 3W; GFR 3 - 4D; GFR 3S - 8D |
