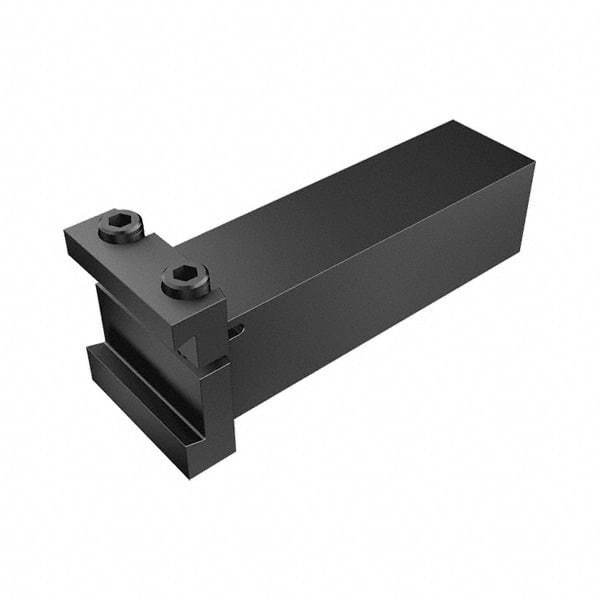

Iscar - Tool Block Style SGTBF, 32mm Blade Height, 116mm OAL, 48mm OAH, Indexable Cutoff Blade Tool Block - 32mm Shank Height, 32mm Shank Width, Series Tool Blocks
Item #: 52734142
Brand: Iscar
Model #: 2300718
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | SGTBF |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 116.00 |
| Overall Length (Decimal Inch) | 4.5669 |
| Overall Height (mm) | 48.00 |
| Overall Height (Decimal Inch) | 1.8898 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Through Coolant | NonThrough Coolant |
| Reversible | No |
| Modular | No |
| Series | Tool Blocks |
| Overall Width (mm) | 48.00 |
| Overall Width (Decimal Inch) | 1.8898 |
| Complete Blade Compatibility | DGFH 32-1.4; DGFH 32-2; DGFH 32-3; DGFH 32-4; DGFH 32C-3 |
| Head Length/Projection (mm) | 116.00 |
| Head Length/Projection (Decimal Inch) | 4.5669 |
| Complete Insert Compatibility | DGN 1900WP; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C |
