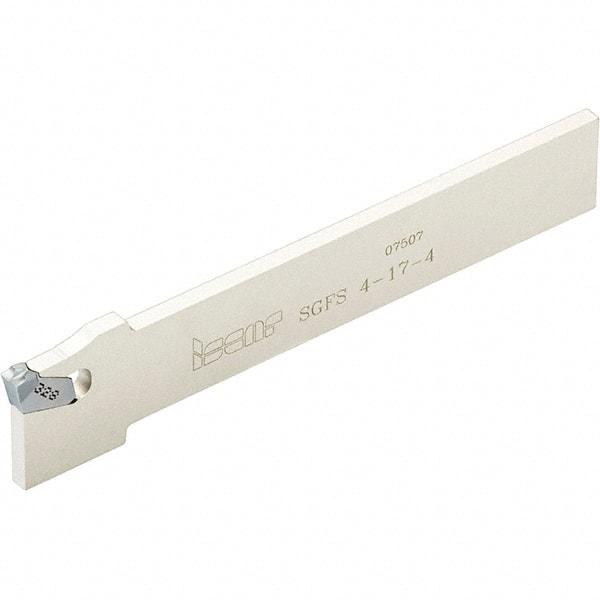

Iscar - 3.54 to 4.52mm Groove Width, Neutral Cut, SGFS Indexable Grooving Blade - GFN-A, GFN-C, GFN-J, GFN-M, GFN-W, GFR/L-C, GFR/L-J, GFR/L-W Insert Style, Series Self-Grip
Item #: 52733698
Brand: Iscar
Model #: 2301056
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.54 |
| Minimum Groove Width (Decimal Inch) | 0.1394 |
| Blade Style | SGFS |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 79.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1102 |
| Blade Height (mm) | 22.20 |
| Blade Height (Decimal Inch) | 0.8740 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 4.52 |
| Maximum Groove Width (Decimal Inch) | 0.1780 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFN-M; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W |
| Complete Insert Compatibility | GFL 4J - 6D; GFL 4JS - 4D; GFL 4W - 8D; GFN 4A; GFN 4M; GFN 4W; GFR 4J - 6D; GFR 4JS - 4D; GFR 4W - 4D; GFR 4W - 8D |
