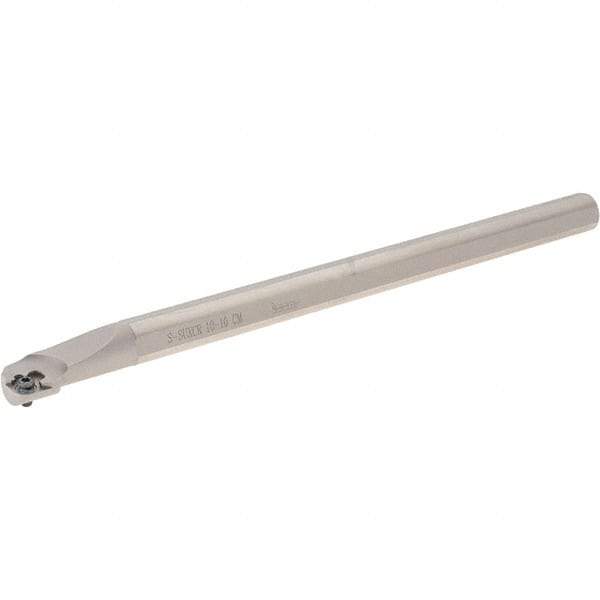

Iscar - 0.78" Min Bore Diam, 10" OAL, 5/8" Shank Diam, S-SUXC Indexable Boring Bar - 1-3/4" Max Bore Depth, C/QC95MT 1005.., RC90MT 1205, SC45MT 1005.. Insert, Screw Holding Method
Item #: 52731528
Brand: Iscar
Model #: 3601775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SUXC |
| Series | ChamTurn |
| Minimum Bore Diameter (Decimal Inch) | 0.7800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | C/QC95MT 1005..; RC90MT 1205; SC45MT 1005.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.4100 |
| Rake Angle | -12 |
| Complete Insert Compatibility | CC95MT 100504-SM; QC95MT 100504-SM; RC90MT 1205M0-SM; SC45MT 100508-SM |
