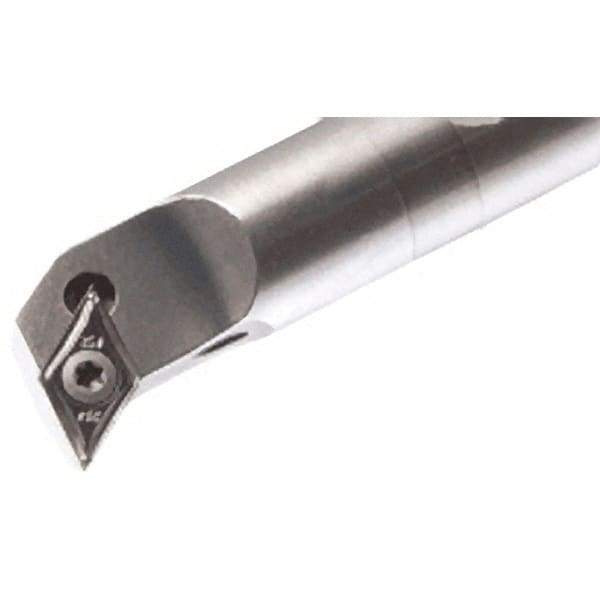

Iscar - 1.22" Min Bore Diam, 12" OAL, 1" Shank Diam, S-SDUC Indexable Boring Bar - 2.17" Max Bore Depth, DC.. 3 Insert, Screw Holding Method
Item #: 52731411
Brand: Iscar
Model #: 3600834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SDUC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 2.1700 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DC.. 3 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6300 |
| Rake Angle | -5 |
| Complete Insert Compatibility | DCGT 3-.004-AS; DCGT 3-0; DCGT 3-0-AS; DCGT 3-1; DCGT 3-1-AS; DCGT 3-1-SM; DCGT 3-2-AS; DCMT 3-0; DCMT 3-0-SM; DCMT 3-1; DCMT 3-1-14; DCMT 3-1-SM; DCMT 3-2; DCMT 3-2-14; DCMT 3-2-SM; DCMT 3-3-SM; DCMW 3-1 |
| Toolholder Material | Steel |
