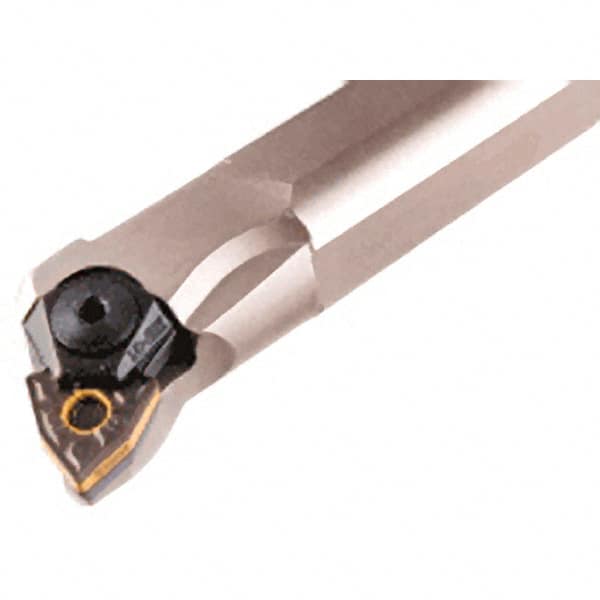

Iscar - 1.22" Min Bore Diam, 12" OAL, 1" Shank Diam, S-MWLN Indexable Boring Bar - 1.38" Max Bore Depth, WNM.. 43.. Insert, Wedge Holding Method
Item #: 52731122
Brand: Iscar
Model #: 3601361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MWLN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.3800 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | WNM.. 43.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Rake Angle | -12 |
| Complete Insert Compatibility | WNMA 432; WNMA 432-WG; WNMA 433; WNMA 434; WNMG 431-GN; WNMG 431-NF; WNMG 431-PP; WNMG 431-TF; WNMG 432-GN; WNMG 432-NF; WNMG 432-PP; WNMG 432-TF; WNMG 433-GN; WNMG 433-NF; WNMG 433-PP; WNMG 433-TF; WNMG 434-GN |
| Toolholder Material | Steel |
