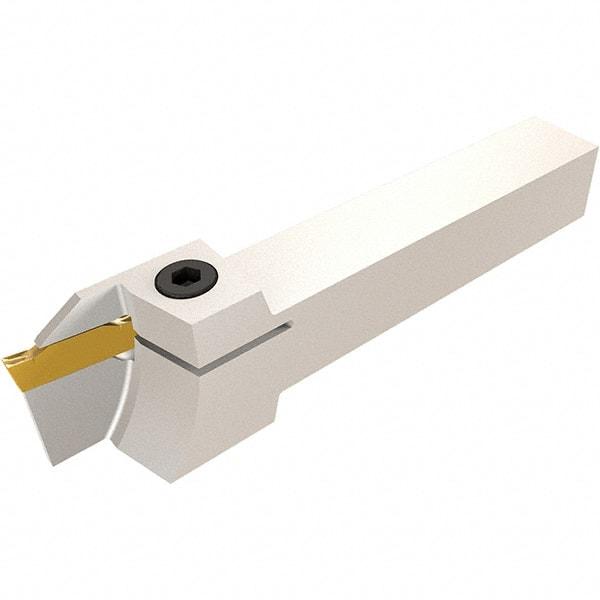

Iscar - PHG, External, Left Hand, 17mm Max Depth of Cut, 2.4 to 3.18mm Groove Width, Indexable Grooving Tool Holder - GDMW 2.4 Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 120mm OAL
Item #: 52726809
Brand: Iscar
Model #: 2800723
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Minimum Groove Width (Decimal Inch) | 0.0945 |
| Minimum Groove Width (mm) | 2.40 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | PHG |
| Insert Compatibility | GDMW 2.4 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Turning |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (mm) | 34.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3386 |
| Back of Bar to Cutting Edge (mm) | 19.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7520 |
| Complete Insert Compatibility | GDMW 2.4 |
