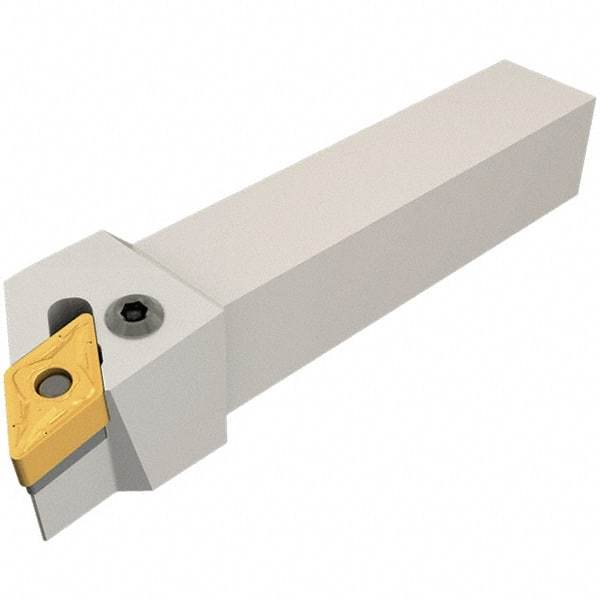

Iscar - PDJN, Right Hand Cut, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, DNMG 1104.. Insert Compatibility, Series Isoturn
Item #: 52726742
Brand: Iscar
Model #: 3601177
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PDJN |
| Rake | Negative |
| Rake Angle | -6 (Axial); -7 (Radial) |
| Series | Isoturn |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | DNMG 1104.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
