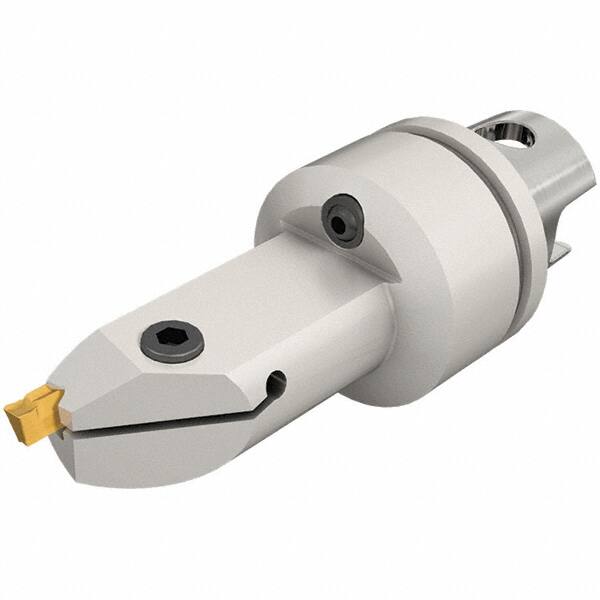

Iscar - KM-HFIR, Internal, Right Hand, 52mm Max Depth of Cut, 3 to 6mm Groove Width, Indexable Grooving Tool Holder - 25mm Shank Width, Through Coolant
Item #: 52725165
Brand: Iscar
Model #: 2500498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (mm) | 52.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Toolholder Style | KM-HFIR |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 40 |
| Center to Cutting Edge (mm) | 11.30 |
| Center to Cutting Edge (Decimal Inch) | 0.4449 |
