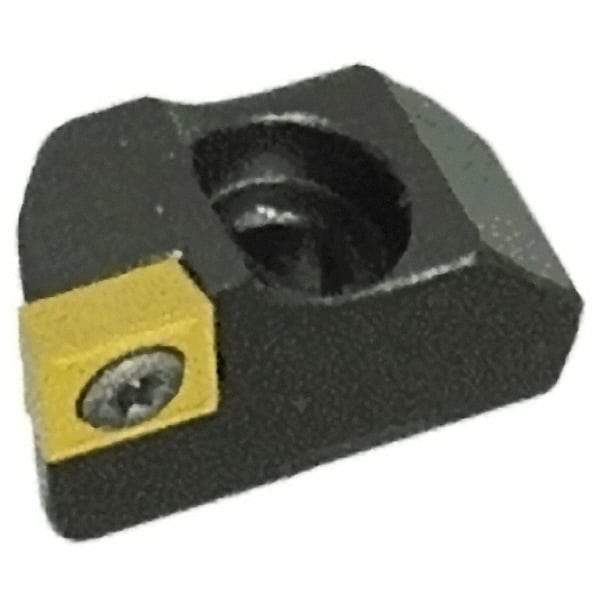

Iscar - Series Itsbore, Right Hand Cut, 68mm Min Bore Diam, Boring Cartridge - 22mm Back of Bar to Cutting Edge, CC.., CN.. Insert, 54mm OAL, 90° Lead Angle
Item #: 52723392
Brand: Iscar
Model #: 4550309
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 2.6772 |
| Minimum Bore Diameter (mm) | 68.00 |
| Insert Style | CC..; CN.. |
| Boring Head Compatibility | BHR MB |
| Overall Length (mm) | 54.00 |
| Overall Length (Decimal Inch) | 2.1260 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Complete Insert Compatibility | CCET-WF; CCGT-AF; CCGT-AS; CCMT; CCMT-14; CCMT-PF; CCMT-WG; CCMT/CCGT; CCMT/CCGT-SM; CNMA; CNMG-GN; CNMG-MR; CNMG-NR; CNMG/CNGG-PP; CNMG/CNGG-TF; CNMM-H3P; CNMM-H4P; CNMM-NM; CNMM-NR |
