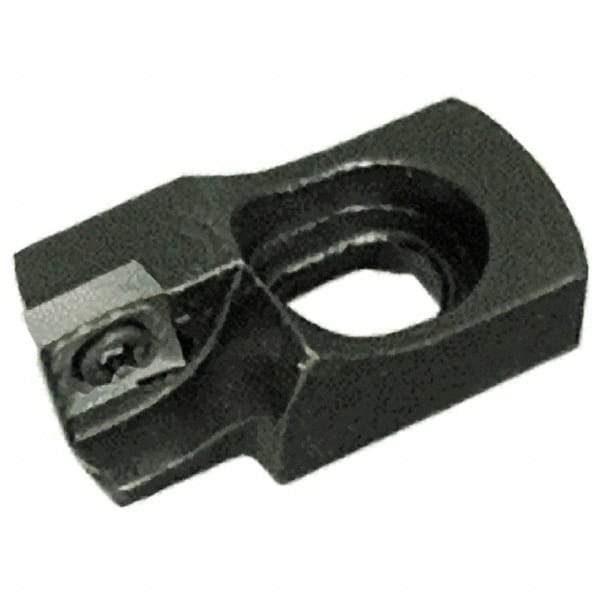

Iscar - Series Itsbore, 22mm Min Bore Diam, Boring Cartridge - 8.5mm Back of Bar to Cutting Edge, CC.. Insert, 21mm OAL, 90° Lead Angle
Item #: 52723293
Brand: Iscar
Model #: 4550334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Minimum Bore Diameter (Decimal Inch) | 0.8661 |
| Minimum Bore Diameter (mm) | 22.00 |
| Insert Style | CC.. |
| Boring Head Compatibility | BBH 30/40; BBH D16; BHE MB; BHF L200; BHF MB |
| Overall Length (mm) | 21.00 |
| Overall Length (Decimal Inch) | 0.8268 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 8.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3346 |
| Complete Insert Compatibility | CCET-WF; CCGT-AF; CCGT-AS; CCMT; CCMT-14; CCMT-PF; CCMT-WG; CCMT/CCGT; CCMT/CCGT-SM |
