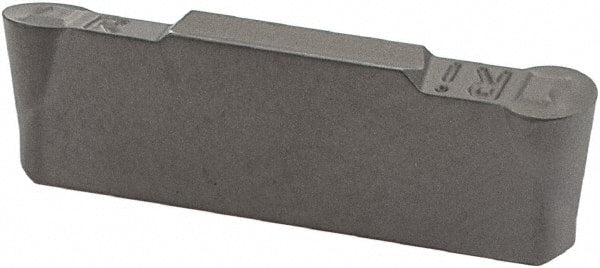

Grooving Insert: HFPR3015 IC20, Solid Carbide Uncoated, Right Hand, 3 mm Cutting Width, 1.5 mm Max Depth, Series Heliface
Item #: 52722279
Brand: Iscar
Model #: 6200040
Product Specifications
| Insert Style | HFPR |
| Insert Size Code | 3015 |
| Insert Size | 3015 |
| Insert Material | Solid Carbide |
| Material Grade | C3; C2 |
| Manufacturer Grade | IC20 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Hand | Right Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Heliface |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | S; H; K; M; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Full Radius | Yes |
| Coating/Finish | Uncoated |
| Single Or Double End | Double |
