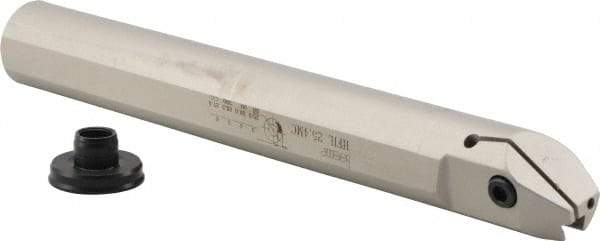

Iscar - HFI, Internal, Left Hand, 0.197" Max Depth of Cut, 0.118 to 0.236" Groove Width, Indexable Grooving Tool Holder - HFP.., HGPL Insert Compatibility, 1" Shank Width, 8" OAL, Through Coolant
Item #: 52721727
Brand: Iscar
Model #: 2500345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | HFI |
| Insert Compatibility | HFP..; HGPL |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing; Turning |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (Decimal Inch) | 0.7870 |
| Maximum Bore Depth (Decimal Inch) | 0.1970 |
| Center to Cutting Edge (Decimal Inch) | 0.4500 |
| Complete Insert Compatibility | HFPL 3003; HFPL 3015; HFPL 4004; HFPL 4020; HFPL 5004; HFPL 5025; HFPL 6004; HFPL 6030; HGPL 4002Y; HGPL 4004Y; HGPL 4020Y; HGPL 5005Y; HGPL 5025Y; HGPL 6005Y; HGPL 6030Y |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Shank Diameter (Decimal Inch) | 1.0000 |
