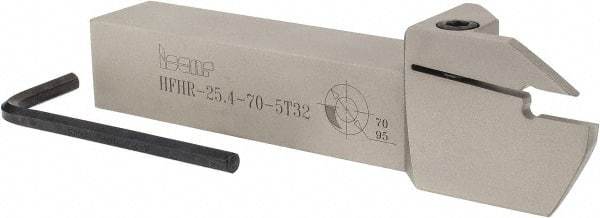

Iscar - HFH, External, Right Hand, 1.26" Max Depth of Cut, 0.197" Min Groove Width, Indexable Grooving Tool Holder - 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52721586
Brand: Iscar
Model #: 2500131
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HFH |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 3.7400 |
| Maximum Groove Outside Diameter (Decimal Inch) | 3.7400 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 2.7600 |
| Head Height (Decimal Inch) | 1.4300 |
| Head Length (Decimal Inch) | 2.0000 |
| Complete Insert Compatibility | DGN; DGN 5003; GRIP; GRIP 5005Y |
