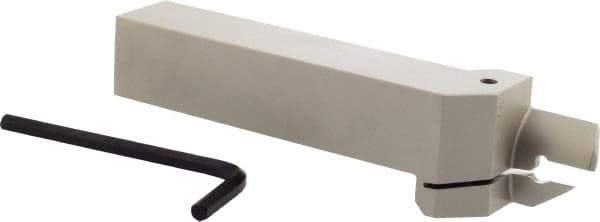

Iscar - HFH, External, Right Hand, 0.98" Max Depth of Cut, 0.157" Max Groove Width, Indexable Grooving Tool Holder - DGN 4.., GRIP 4.., HFPR 4004 Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52721495
Brand: Iscar
Model #: 2500201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HFH |
| Insert Compatibility | DGN 4..; GRIP 4..; HFPR 4004 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0200 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.8900 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.5700 |
| Head Height (Decimal Inch) | 1.4300 |
| Complete Insert Compatibility | DGN 4003C; DGN 4003J; DGN 4003JT; DGN 4803J; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; HFPR 4004 |
