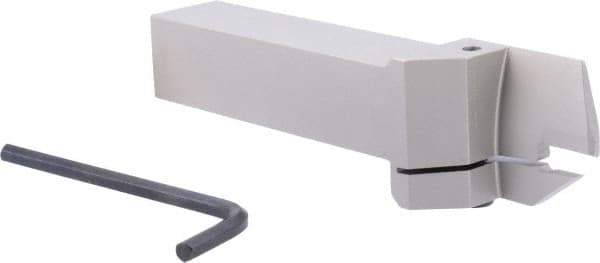

Iscar - HFH, External, Right Hand, 1.26" Max Depth of Cut, 0.236" Max Groove Width, Indexable Grooving Tool Holder - DGN 6303, GRIP 6.., HFPR 6004 Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52721354
Brand: Iscar
Model #: 2500330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HFH |
| Insert Compatibility | DGN 6303; GRIP 6..; HFPR 6004 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0500 |
| Maximum Groove Outside Diameter (Decimal Inch) | 15.8000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 7.0900 |
| Head Height (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | DGN 6303C; DGN 6303J; DGN 6303JT; GRIP 6005Y; GRIP 6008Y; GRIP 6030Y; GRIP 635-080Y; GRIP 635-318Y; HFPR 6004 |
