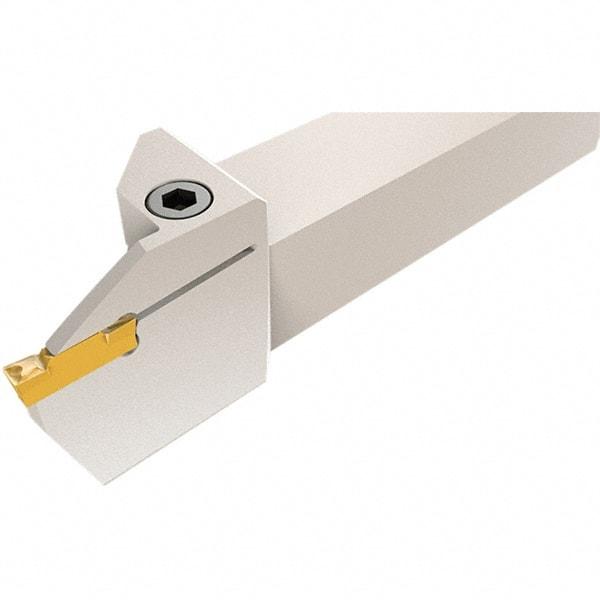

Iscar - HFH, Internal or External, Right Hand, 25mm Max Depth of Cut, 4 to 4mm Groove Width, Indexable Grooving Tool Holder - DGN 4003, GRIP 4.., HFPR 40.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 140mm OAL
Item #: 52721289
Brand: Iscar
Model #: 2500157
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Toolholder Style | HFH |
| Insert Compatibility | DGN 4003; GRIP 4..; HFPR 40.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8110 |
| Maximum Groove Outside Diameter (mm) | 75.00 |
| Minimum Axial Groove Inside Diameter(mm) | 60.00 |
| Head Height (Decimal Inch) | 1.2598 |
| Head Height (mm) | 32.00 |
| Complete Insert Compatibility | DGN 4003C; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; HFPR 4004; HFPR 4020 |
