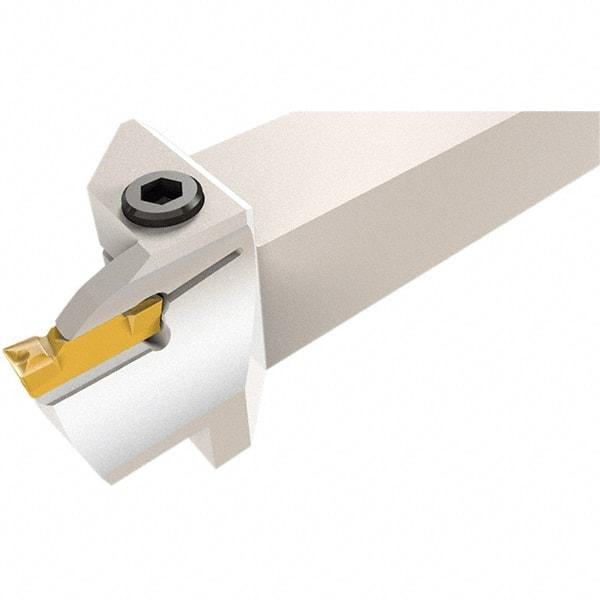

Iscar - HFH, Internal or External, Left Hand, 32mm Max Depth of Cut, 5 to 5mm Groove Width, Indexable Grooving Tool Holder - H.PL 50.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 52721099
Brand: Iscar
Model #: 2500066
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | HFH |
| Insert Compatibility | H.PL 50.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0236 |
| Maximum Groove Outside Diameter (mm) | 180.00 |
| Minimum Axial Groove Inside Diameter(mm) | 130.00 |
| Head Height (Decimal Inch) | 1.4567 |
| Head Height (mm) | 37.00 |
| Complete Insert Compatibility | HFPL 5004; HFPL 5025; HGPL 5005Y; HGPL 5025Y |
