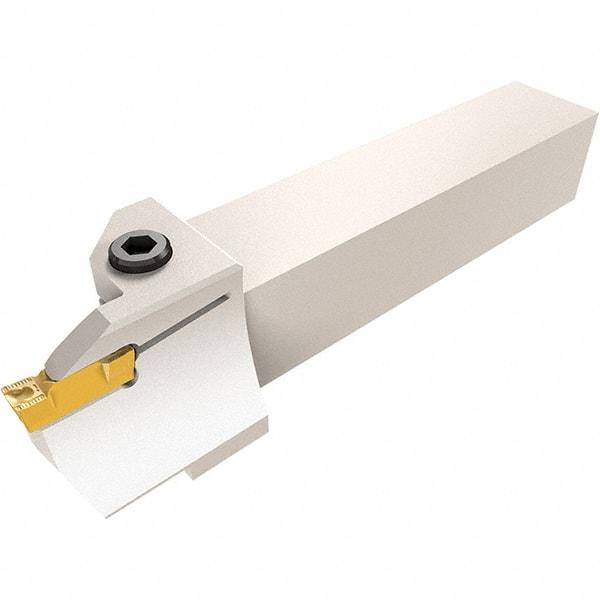

Iscar - HFH, External, Left Hand, 1.26" Max Depth of Cut, 0.236" Max Groove Width, Indexable Grooving Tool Holder - H.PL 60.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 52720778
Brand: Iscar
Model #: 2500329
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | HFH |
| Insert Compatibility | H.PL 60.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0500 |
| Maximum Groove Outside Diameter (Decimal Inch) | 7.0900 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.9400 |
| Head Height (Decimal Inch) | 1.4700 |
| Complete Insert Compatibility | HFPL 6004; HFPL 6030; HGPL 6005Y; HGPL 6030Y |
