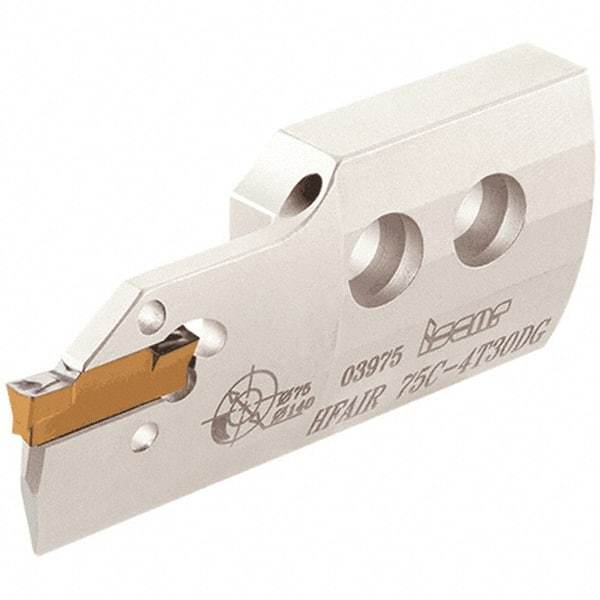

Iscar - 5mm Groove Width, 25mm Max Depth of Cut, Left Hand Cut, HFAI Indexable Grooving Blade - HFPR/L Insert Style, Series Heliface
Item #: 52720398
Brand: Iscar
Model #: 2550023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Blade Style | HFAI |
| Series | Heliface |
| Minimum Workpiece Diameter (mm) | 55.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.1654 |
| Maximum Workpiece Diameter (mm) | 70.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.7559 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.2040 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Insert Style | HFPR/L |
