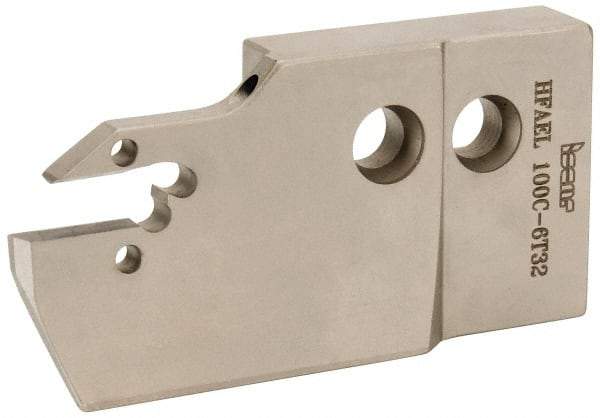

Iscar - 6mm Groove Width, 32mm Max Depth of Cut, Left Hand Cut, HFAE Indexable Grooving Blade - DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGN-UT/UA, DGN-W, GRIP, HFPR/L, HGPL Insert Style, Series Heliface
Item #: 52720174
Brand: Iscar
Model #: 2550055
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Blade Style | HFAE |
| Series | Heliface |
| Minimum Workpiece Diameter (mm) | 100.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Maximum Workpiece Diameter (mm) | 180.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 7.0866 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.2040 |
| Overall Length (mm) | 73.00 |
| Overall Length (Decimal Inch) | 2.8740 |
| Insert Style | DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-UT/UA; DGN-W; GRIP; HFPR/L; HGPL |
