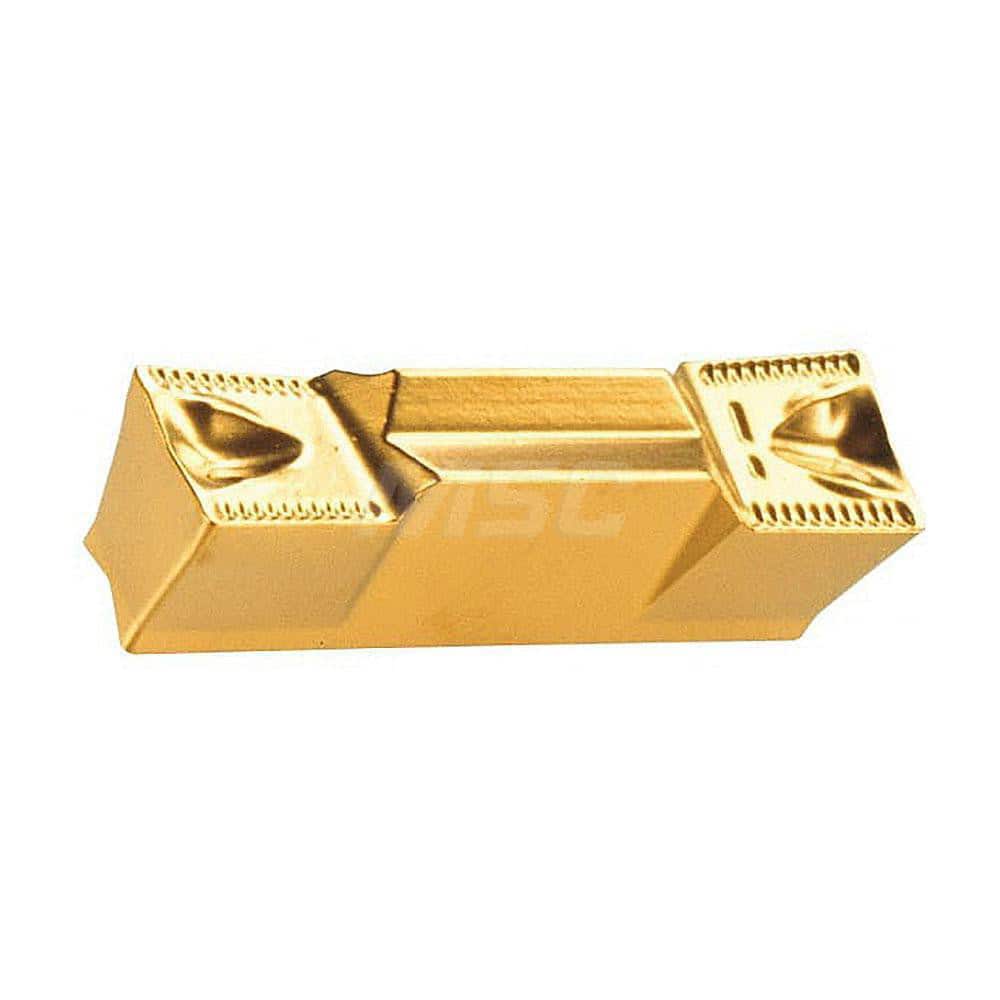

Grooving Insert: GRIP3003Y IC08, Solid Carbide Uncoated, Neutral, 3 mm Cutting Width, 1.8 mm Max Depth, Series Heli-Grip
Item #: 52717584
Brand: Iscar
Model #: 6200099
Product Specifications
| Insert Style | GRIP |
| Insert Size Code | 3003Y |
| Insert Size | 3003 |
| Insert Material | Solid Carbide |
| Material Grade | C2 |
| Manufacturer Grade | IC08 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Maximum Depth of Cut (mm) | 1.80 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Heli-Grip |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 16.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | Y |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Single Or Double End | Double |
