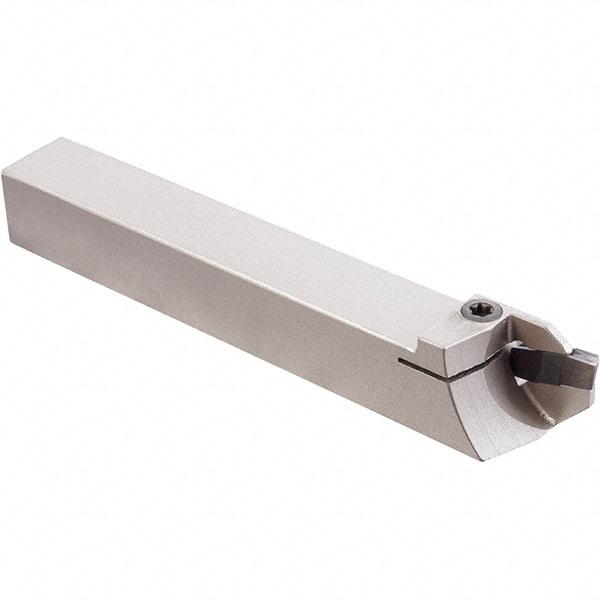

Iscar - GM, Internal or External, 4.6mm Max Depth of Cut, 4mm Max Groove Width, Indexable Grooving Tool Holder - GI.I, TIPI 5.4M Insert Compatibility, 20mm Shank Width, 90mm OAL
Item #: 52717394
Brand: Iscar
Model #: 2800517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Toolholder Style | GM |
| Insert Compatibility | GI.I; TIPI 5.4M |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 30.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.1811 |
| Center to Cutting Edge (mm) | 14.70 |
| Center to Cutting Edge (Decimal Inch) | 0.5787 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIPI 2.22-0.15; GIPI 2.22-0.10; GIPI 2.30-0.20; GIPI 2.39-0.15; GIPI 2.50-0.20; GIPI 3.00-1.5UL; GIPI 3.00-1.5UR; GIPI 3.00E-0.40; GIPI 4.00-2.0UL; GIPI 4.00-2.0UR; GIPI 4.00E-0.40; TIPI 3.4MT-0.10 |
