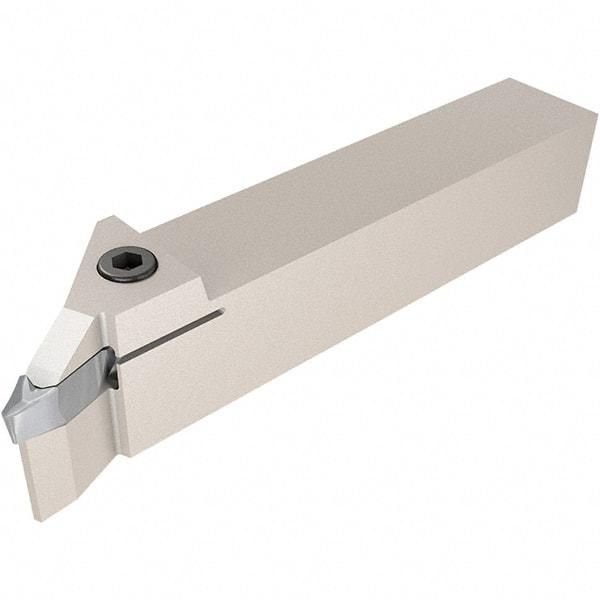

Iscar - GIPA 8, 45° Lead Angle GHVL Internal or External Left Hand Indexable Profiling Toolholder - 1" Shank Height x 1" Shank Width, 5.92" Long
Item #: 52714011
Brand: Iscar
Model #: 2800805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Left Hand |
| Insert Compatibility | GIPA 8 |
| Toolholder Style | GHVL |
| Series | Cut Grip |
| Through Coolant | No |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.9200 |
| Insert Holding Method | Clamp |
| Lead Angle | 45 |
| Offset Angle | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1600 |
| Complete Insert Compatibility | GIPA 8-35V-1.20; GIPA 8-35V-1.20-D; GIPA 8YZ-35V-1.20; GIPA 8YZ-35V-0.80; GIPA 8YZ-35V-1.20-D |
