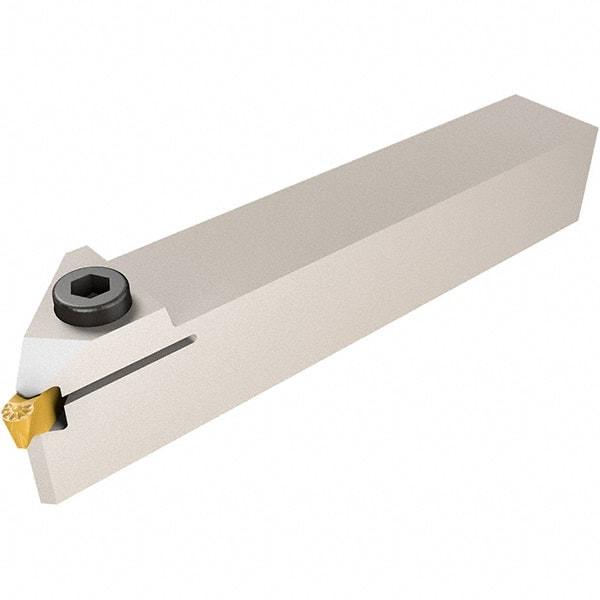

Iscar - GHMU, External, Right Hand, 6.4mm Max Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 122mm OAL
Item #: 52713989
Brand: Iscar
Model #: 2800472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 6.40 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (mm) | 122.00 |
| Overall Length (Decimal Inch) | 4.8031 |
| Toolholder Style | GHMU |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Undercutting |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 23.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9055 |
| Complete Insert Compatibility | GIF 5.00E-060-30D; GIF 5.00E-060-30G; GIF 5.0E-060-30D; GIF 6.00E-080-30D; GIF 6.00E-080-30G; GIMY 315-UN; GIMY 420-UN; GIP 3.00-1.50UN; GIP 3.18-0.20-22D; GIP 3.18-0.20-22G; GIP 4.00-2.0UN |
