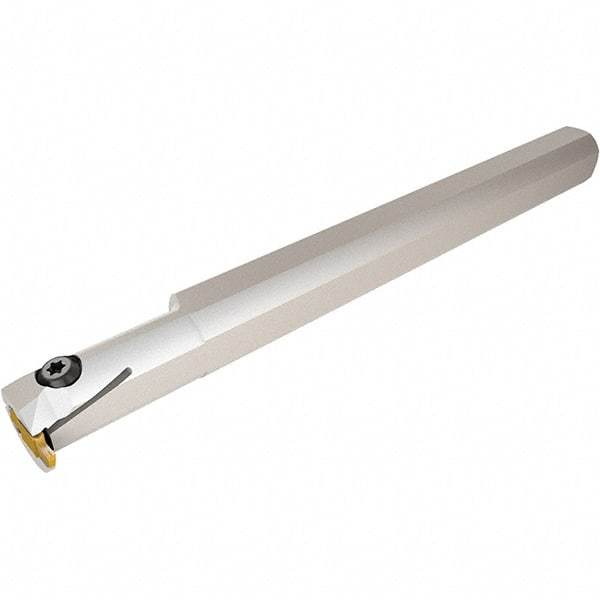

Iscar - 25mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, GHI Indexable Boring Bar - 50mm Max Bore Depth, GI.., TIPI 3.4MT Insert
Item #: 52713674
Brand: Iscar
Model #: 2800347
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | GI..; TIPI 3.4MT |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 17.50 |
| Center to Cutting Edge (Decimal Inch) | 0.6890 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIMIY 304; GIMIY 404; GIPI 2.50-0.20; GIPI 2.70-0.15; GIPI 2.70-0.10; GIPI 3.00-0.40; GIPI 3.00E-0.40; GIPI 3.18-0.20; GIPI 4.00E-0.40; TIPI 3.4MT-0.10 |
