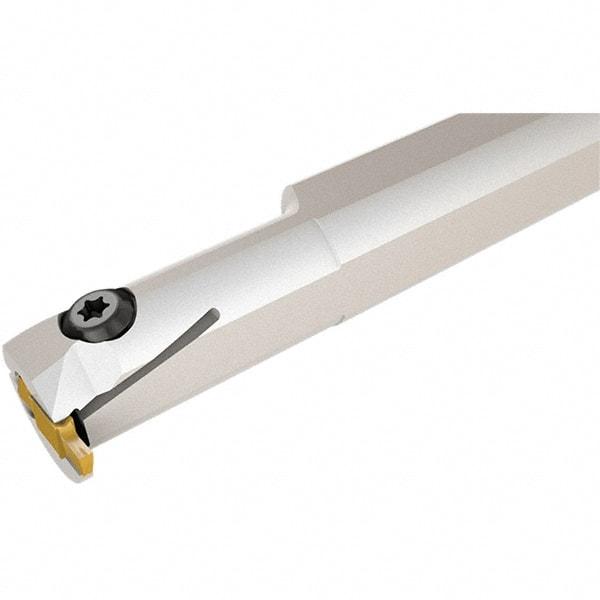

Iscar - 20mm Min Bore Diam, 160mm OAL, 20mm Shank Diam, GHI Indexable Boring Bar - 16mm Max Bore Depth, GI.., TIPI 3.4MT Insert
Item #: 52713666
Brand: Iscar
Model #: 2800342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 16.00 |
| Maximum Bore Depth (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | GI..; TIPI 3.4MT |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 14.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5709 |
| Complete Insert Compatibility | GIMIY 304; GIPI 2.00-0.10LX; GIPI 2.00-0.10RX; GIPI 2.22-0.15; GIPI 2.22-0.10; GIPI 2.30-0.20; GIPI 2.39-0.15; GIPI 2.39-0.2LX; GIPI 2.39-1.19LX; GIPI 2.50-0.20; GIPI 3.00E-0.40; TIPI 3.4MT-0.10 |
