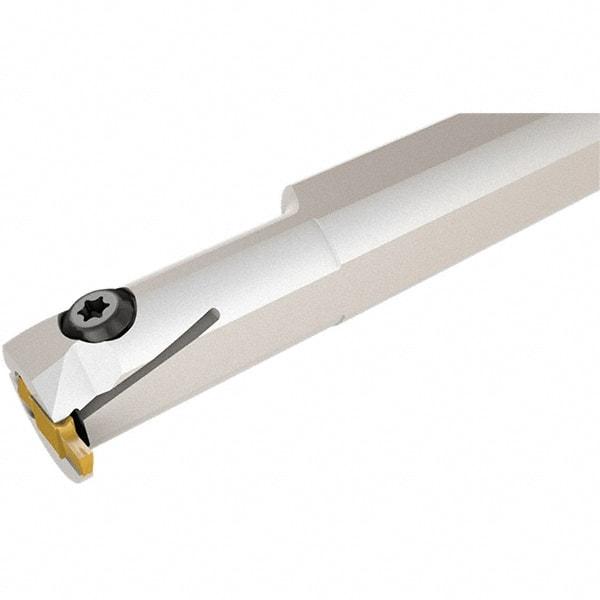

Iscar - 20mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, GHI Indexable Boring Bar - 40mm Max Bore Depth, GI.. Insert
Item #: 52713500
Brand: Iscar
Model #: 2800295
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | GI.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 14.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5709 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIFI 4.78-0.55; GIMIY 304; GIMIY 404; GIPI 3.00-0.40; GIPI 3.00E-0.40; GIPI 3.18-0.20; GIPI 3.30-0.10; GIPI 3.96-0.20; GIPI 4.00E-0.40; GIPI 4.23-0.10 |
