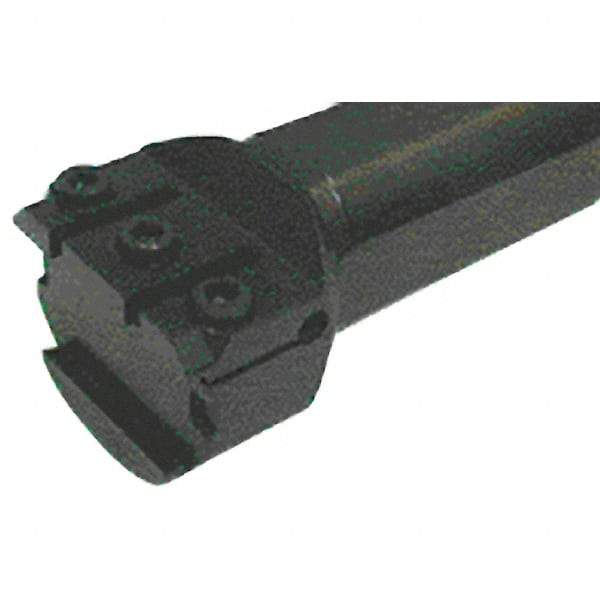

Iscar - GHIC, Internal, Neutral, 1.18" Max Depth of Cut, 0.11 to 1/4" Groove Width, Indexable Grooving Tool Holder - GI.., TIP Insert Compatibility, 2.28" Shank Height, 1-1/2" Shank Width, 12" OAL
Item #: 52713419
Brand: Iscar
Model #: 2800797
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 1.1800 |
| Minimum Groove Width (Decimal Inch) | 0.1100 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | GHIC |
| Insert Compatibility | GI..; TIP |
| Shank Height (Decimal Inch) | 2.2800 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (Decimal Inch) | 3.3500 |
| Head Height (Decimal Inch) | 2.2800 |
| Minimum Bore Diameter (Decimal Inch) | 3.3500 |
| Shank Diameter (Decimal Inch) | 1.5000 |
